Guangzhou Xingjin Fire Equipment Co.,Ltd. info@xingjin-fire.com 86--18011936582
Chi tiết sản phẩm
Nguồn gốc: QUẢNG CHÂU, TRUNG QUỐC
Hàng hiệu: XINGJIN
Chứng nhận: CCC;GB/T 3836.1-2021;GB/T 3836.4-2021;GB 19880-2005
Số mô hình: J-SAP-JBF4121A
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Hệ thống 100 bộ
Giá bán: USD3-4/pc
chi tiết đóng gói: Hộp gỗ hoặc hộp bên ngoài bằng gỗ dán có túi bong bóng hoặc giấy
Thời gian giao hàng: 15-20 ngày
Điều khoản thanh toán: T/T, L/C
Khả năng cung cấp: 300000 bộ mỗi tháng
Kích thước hộp quà tặng: |
345*274*74mm |
Ứng dụng: |
trường học |
Màn hình: |
Dẫn đến |
Tính năng bổ sung: |
Kết nối liên thông, Giám sát từ xa, Cảnh báo bằng giọng nói |
Nhiệt độ đáng báo động: |
54oC ~ 70oC |
Điện áp xe buýt: |
DC 14V ~ DC 24V |
Vật liệu băng tần: |
PU |
Kích thước máy chủ: |
45*34*14mm |
Bảo hành: |
1 năm |
môi trường làm việc: |
-10℃～50℃ |
Kích thước đóng gói: |
138*118*48mm |
Tần số không dây: |
433MHz |
Tiêu thụ điện năng tối đa: |
0,5w |
Kích thước hộp quà tặng: |
345*274*74mm |
Ứng dụng: |
trường học |
Màn hình: |
Dẫn đến |
Tính năng bổ sung: |
Kết nối liên thông, Giám sát từ xa, Cảnh báo bằng giọng nói |
Nhiệt độ đáng báo động: |
54oC ~ 70oC |
Điện áp xe buýt: |
DC 14V ~ DC 24V |
Vật liệu băng tần: |
PU |
Kích thước máy chủ: |
45*34*14mm |
Bảo hành: |
1 năm |
môi trường làm việc: |
-10℃～50℃ |
Kích thước đóng gói: |
138*118*48mm |
Tần số không dây: |
433MHz |
Tiêu thụ điện năng tối đa: |
0,5w |
Products Description
In automatic mode, when detectors detect a fire, they send signals to the control panel The control panel then activatesthe alarm fashing device, starts exhaust fans, cuts off non-essential power, and recalls elevators. If someone sees the fire.they can press the manual call point to initate the same process. For gas protection areas, two detectors need to beactivated simultaneously before the timer starts After the delay, the gas will be released, and the release indicator lightswill light up to warn people not to enter. All these steps work together to ensure rapid detection and safe evacuation.
|
1. Detection Layer (Sensors) The detection layer is the perception systemof the fire alarm system. It includes smokedetectors, heat detectors, and mixed smokeand heat detectors. Smoke detectors cansense the air changes caused by a fire and aresuitable for offices and hotels. Heat detectorsmonitor temperature rises and are suitable forkitchens and garages. Combined detectorsuse both signals simultaneously to reducefalse alarms, making them ideal for hospitalsand high-end buildings. For large spaces likewarehouses or stadiums, beam-type smokedetectors are used. For high-risk areas like oildepots, flame detectors are recommended. |
|
2. Input Layer (Manual and MonitoringEquipment) This layer has the functions of humanoperation and external equipment monitoring.It includes manual call points, input modules,short-circuit isolators, and fire phone sockets.The manual call points are set near exits andstaircases to enable people to manuallytrigger the alarm. The input module receivessignals from external devices (such as waterflow switches or pressure switches). Theshort-circuit isolator protects the system bydisconnecting the faulty part of the circuit. Thefire phone socket enables firefighters tocommunicate with the control center inemergencies. |
|
3. Control Layer (The "Brain" of the System)The control layer is the "brain" of the entiresystem. Its main components are the firealarm control panel and the gas firesuppression control panel. The fire alarmcontrol panel receives signals from alldetectors and modules. It decides when toissue an alarm and activate other devices. Thegas fire suppression control panel isspecifically designed for FM200, IG541, or CO2systems. It has functions such as delayedstart-up, manualautomatic mode switching,and pressure feedback monitoring. Othercontrol devices include repeater panels fordisplaying alarms on different floors and firebroadcast hosts for playing evacuationinstructions. |
|
4. Execution Layer (Alarm and ActionEquipment) The execution layer is responsible forexecuting the instructions from the controlpanel. It includes alarm indicator lights, outputmodules, fire alarm bells, and gas releaseindicators. The alarm indicator lights can emitloud sounds and flash lights to alert people toevacuate. The output module controls otherdevices, such as exhaust fans, fire dampers,power cut-off devices, or elevator recalldevices. The fire alarm bell is a low-costoption for traditional systems. The gas releaseindicator is installed at the entrance of theprotected area. When gas is about to bereleased or has been released, they will lightup to warn people not to enter. |
Product Advantages
|
|
|

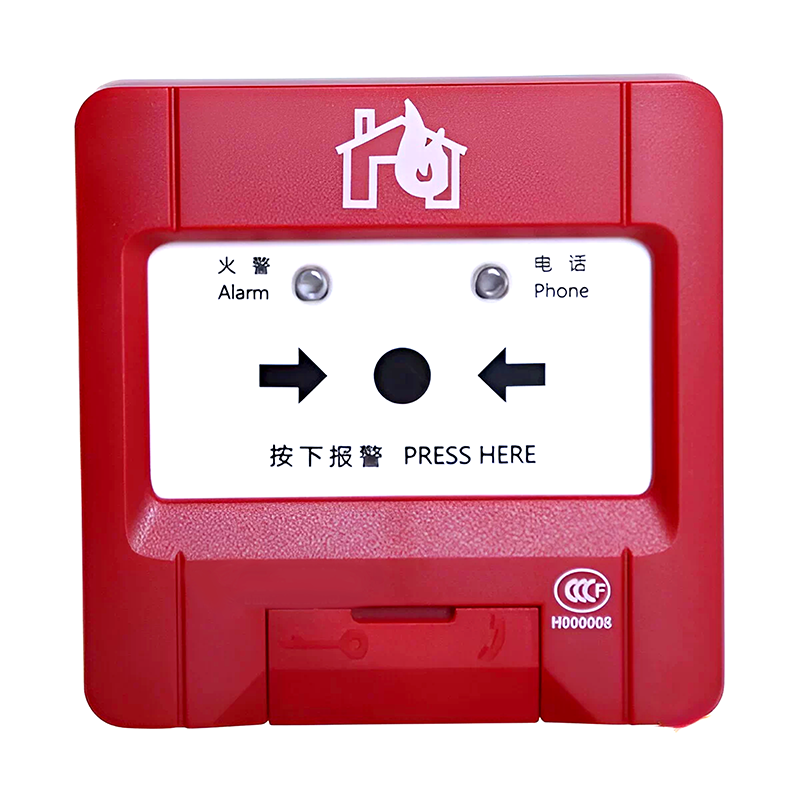

| J-SAP-M-A62E Addressable ManualCall Point 1.GB 19880 certified. 2.Simple and reliable device addressingvia portable coder. 3. Stable communication techniquewith high noise immunity. 4.Reusable and resettable operatingelements. |
J-SAP-M-A62KE ConventionalManual 1.Call Point GB 19880 certified. 2.Comes with a two-wire fire telephonejack. 3.The manual alarm provides passiveoutput contacts, which can directlycontrol external devicesthrough anintermediate relay. 4. Resettable press button. |
J-SAP-M-A62E-Ex AddressableIntrinsically Safe Manual Call Point 1.GB 19880 & GB/T 3836.1& GB/T3836.4 certified. 2.Explosion-proof type: Intrinsic safety. 3.Fully electronic encoding allows foron-site rewriting via an encoder. 4.The manual alarm can directly controlexternal devices. 5.Resettable press button. |
Products Parameters
| Specifications | J-SAP-M-A62E | J-SAP-M-A62KE | J-SAP-M-A62E-Ex |
|---|---|---|---|
| Operating Voltage | Loop 24V | DC 24V | Loop 24V |
| Operating Current | Quiescent current: <300µA Alarm current: <2mA |
Quiescent current: <0µA Alarm current: <25mA |
Quiescent current: <300µA Alarm current: <1mA |
| Dimension (with base) | 90×90×43mm (W×H×D) | 90×90×43mm (W×H×D) | 100×90×43mm (W×H×D) |
| Explosion-proof Sign | - | - | Ex ib IIC T6 Gb |
| Operating Environment | Operating Temperature: -10°C to 55°C Relative Humidity: ≤ 95% (Non-condensing at 40°C ±2°C) |
