Automatic Fire Detection Tube Extinguishing Equipment for Electrical Cabinets

FM200, CO2 direct and indirect fire detection tube

Product Introduction:
  Temperature-sensing, self-actuating fire extinguishing devices are a type of advanced fire extinguishing device that has recently been developed both domestically and internationally. They are fixed, non-electric, and self-actuating. They require no power source or traditional fire detection and alarm equipment. The entire system consists solely of a fire extinguishing agent storage cylinder and a flexible fire detection tube. The fire detection tube integrates fire detection, device activation, and fire extinguishing agent release. These flexible fire detection tubes can be conveniently positioned closest to any potential ignition source. In the event of a fire, the fire detection tubes rupture due to heat, instantly releasing the fire extinguishing agent for targeted extinguishing.

Devices and components:
  Fire detection tube automatic fire extinguishing device can be divided into direct fire detection tube automatic fire extinguishing device and indirect fire detection tube automatic fire extinguishing device according to different system structures.

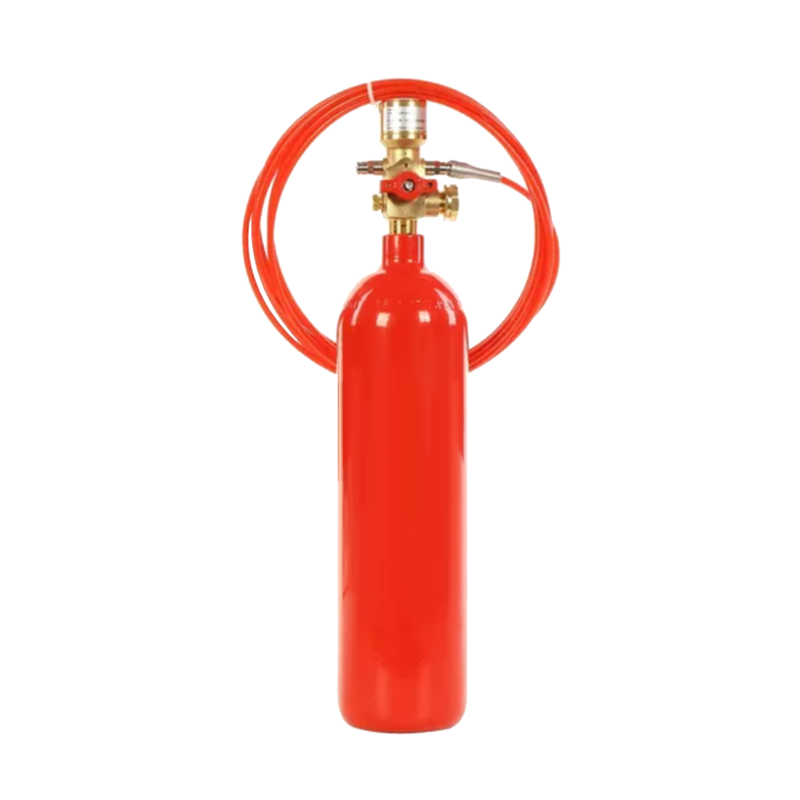

1.1 Direct-Type Temperature-Sensing Self-Activating Fire Extinguishing Device
1) Components
  It primarily consists of a container containing fire extinguishing agent, a container valve, a pressurized fire detection tube capable of releasing fire extinguishing agent and providing fire detection capabilities, a pressure gauge, a check valve, a pressure switch, an alarm bell, and a dedicated connector for the fire detection tube.
  The fire detection tube is a high-tech non-metallic composite product. It combines long-term leak resistance, flexibility, and effective temperature sensitivity. After pressurization, it explodes within a certain temperature range to spray the fire extinguishing medium or transmit a fire signal.
2) Working Principle
  The fire detection tube is connected to the fire extinguishing agent container via the container valve and is positioned above the most likely fire source to detect the fire source. When a fire is encountered, the fire detection tube softens and explodes at the highest point of heat exposure.    The pressure drop in the fire detection tube activates the container valve, releasing fire extinguishing agent from the explosion hole in the fire detection tube to extinguish the fire. Simultaneously, an alarm bell sounds, alerting the user that the fire extinguishing device has been activated and that the fire must be extinguished, the system repaired, and the fire extinguishing agent refilled.

1.2 Indirect Temperature-Sensing Self-Activating Fire Extinguishing Device
1) Components
  It primarily consists of a container containing fire extinguishing agent, a container valve, a pressurized fire detection tube, a release tube, a nozzle, a pressure gauge, a check valve, a pressure switch, an alarm bell, and a dedicated connector for the fire detection tube.
2) Working Principle
  The fire detection tube is connected to the fire extinguishing agent container via the container valve and positioned above the most likely fire source to detect the fire source. Upon encountering a fire, the fire detection tube softens and ruptures at the highest point of heat exposure. The pressure drop in the fire detection tube activates the container valve, releasing the fire extinguishing agent through the release tube to the nozzle, extinguishing the fire. Simultaneously, an alarm bell sounds, alerting the user that the fire extinguishing device has been activated and requiring verification of fire extinguishing, system repair, and refilling of the fire extinguishing agent.

Product parameters:

Packaging and Shipping for Inert Gas Fire Suppression System
Packaging:
The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. The packaging will consist of the following materials:Heavy-duty cardboard box,Bubble wrap,Protective foam inserts,Instruction manual
Shipping:
We offer worldwide shipping for our Inert Gas Fire Suppression System. The following shipping options are available:

  Standard shipping: Estimated delivery time of 5-7 business days
  Expedited shipping: Estimated delivery time of 2-3 business days
  International shipping: Delivery time varies depending on location
  All shipments will be sent using a reliable and trusted courier service to ensure timely and secure delivery.

  Customers will receive a tracking number via email once their order has been shipped.

Customs and Duties:
  Customers are responsible for any applicable customs and duties fees for international shipments. These fees may vary depending on the destination country and are not included in the total price of the Inert Gas Fire Suppression System.

Special Handling Instructions:
  If there are any special handling instructions for your shipment, please contact us at least 24 hours before your order is shipped. We will do our best to accommodate your request.

  Thank you for choosing our Inert Gas Fire Suppression System. We hope it provides you with the peace of mind and protection you need.



FAQ:
Q: Do you offer other types of fire protection equipment?
A: We offer a full range of FM200 fire protection products, including but not limited to ducted, cabinet, suspended, and cabinet-mounted FM200 systems, IG systems, fire alarms, ventilation systems, and more.

Q: Can you design a complete firefighting system for my factory?
A: Yes. Provide us with the size and area of ​​your factory, and we will have a professional designer provide you with excellent advice.

Q: Can you OEM and establish your own brand?
A: Yes, we offer OEM and ODM services, and you can also establish your own brand on your products.

Q: Can you produce firefighting cans with specific spray paint dimensions?
A: Yes, we are both a manufacturer and a trading company. We have our own factory and welcome your inquiries.
